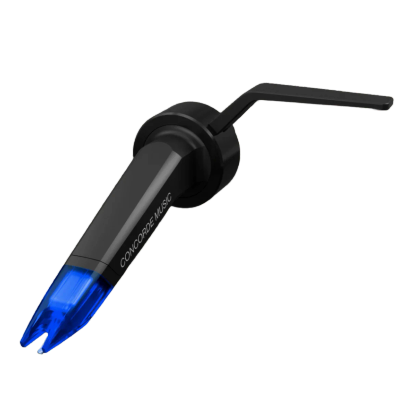

ORTOFON Concorde Music Blue
Experience unveiled and clear sound reproduction with the Concorde Music Blue, featuring a Nude Elliptical stylus on an Aluminum cantilever, and offers an upgrade from the Concorde Music Red. Enjoy seamless upgrades throughout the series, from the Concorde Music Blue to the Concorde Music Black LVB 250, simply by replacing the stylus.
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music represents a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, requiring no tools, making it hassle-free and convenient.
Award winning cartridge design
Iconic design
Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.
Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.
Stylus
The Concorde Music Blue, featuring a Nude Elliptical stylus on an Aluminum cantilever, offers an upgrade from the Concorde Music Red. Nude diamonds, weighing less than their tipped counterparts, enhance responsiveness, detail, and reduce distortion.
Rubber suspension
A crucially important and vital part of a phono cartridge overall performance is the stylus rubber suspension. Exclusive Ortofon rubber compounds are used for the stylus suspensions in the Concorde Music Blue, carefully produced at the inhouse rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.
Specifications
Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5cm/sec 6mV
Channel separation at 1 kHz 25 dB
Frequency response 20 Hz - 20 kHz +2 / -1 dB
Tracking ability at 315 Hz 80 um
Compliance, dynamic, lateral 15 um/mN
Cantilever material Aluminium
Stylus type Nude Elliptical diamond
Stylus tip radius r/R 8/18 um
Coil system Quad-coils with split pole pins
Tracking force, recommended 1.8 g
Tracking angle 20°
Cartridge colour Black/Blue
Cartridge weight 18 g
Recommended load resistance 47 kOHM
Recommended load capacitance 150-300 pF
La cápsula y cabezal Ortofon Music Blue es una opción diseñada especialmente para los amantes de la música analógica que buscan una experiencia sonora excepcional. Este producto, fabricado en Dinamarca, combina tecnología de vanguardia con la tradición artesanal de Ortofon, brindando un sonido cálido y detallado, ideal para cualquier género musical.
Su estructura robusta y cuidadosa construcción aseguran un rendimiento óptimo y duradero, permitiendo que cada nota y matiz sean reproducidos con máxima fidelidad. La Music Blue está equipada con un si
