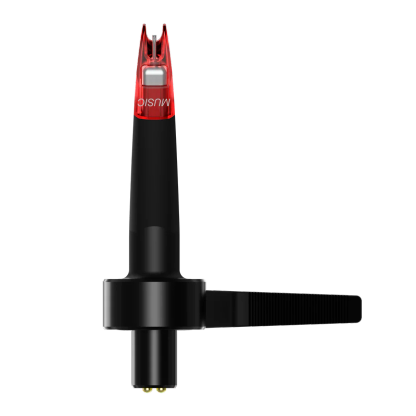

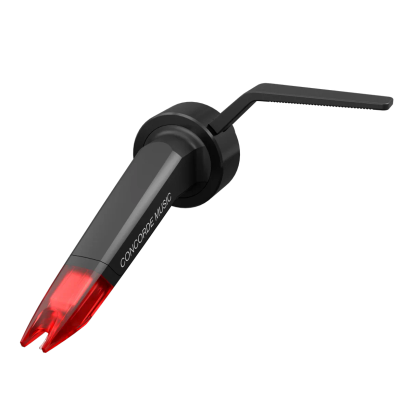

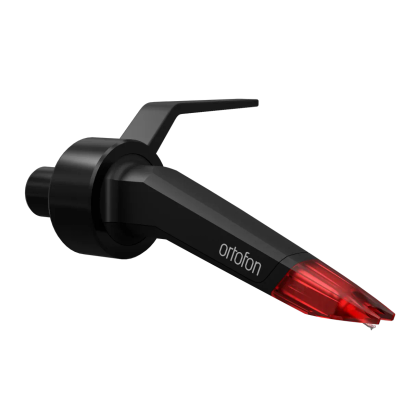

Ortofon Concorde Music Red
Moving Magnet Phono Cartridge integrated heashell
Premium Moving Magnet cartridge
Concorde Music Red
Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.
Stylus
The Concorde Music Red features an Elliptical diamond polished to the highest standards of the industry, mounted on a premium aluminum cantilever. This ensures the best possible transmission of the vinyl record groove modulations picked up by the diamond.

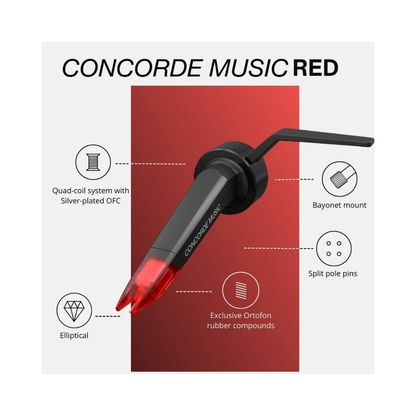

Coil system
The Concorde Music features Ortofon's quad-coil generating system with split pole pins. Silver-plated oxygen-free copper is chosen for the quad-coil system, along with four Ortofon split pole pins.
This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.
Specifications
Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5cm/sec 6mV
Channel separation at 1 kHz 22 dB
Frequency response 20 Hz - 20 kHz +3 / -1 dB
Tracking ability at 315 Hz 80 um
Compliance, dynamic, lateral 15 um/mN
Cantilever material Aluminium
Stylus type Elliptical diamond
Stylus tip radius r/R 8/18 um
Tracking force, recommended 1.8 g
Tracking angle 20°
Cartridge colour Black/Red
Cartridge weight 18 g
Recommended load resistance 47 kohm
Recommended load capacitance 150-300 pF
